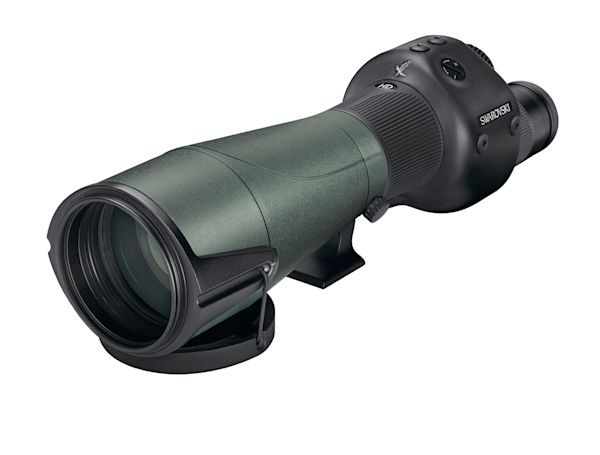

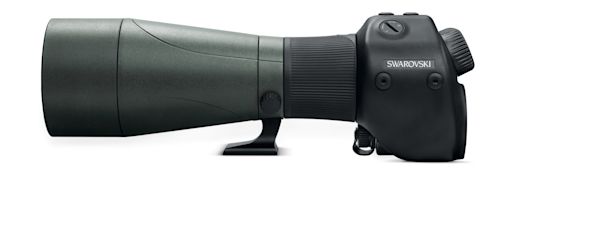

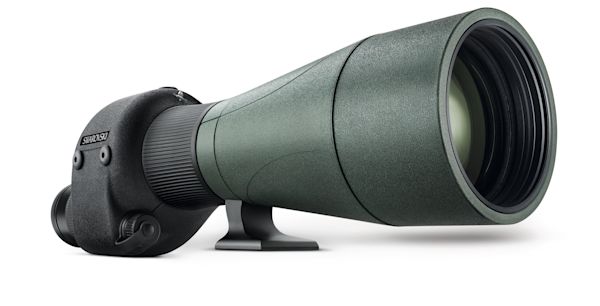

STR spotting scope

Model Selection
Product selection
Effective objective lens diameter
  • 80
Reticle
  • MRAD$4,177.00
  • MOA$4,177.00
Free shipping above 95.00 $
Delivery in 3-7 working days
Return guarantee

Do you want to learn more about the product family?

to Family
Do you need help?Customer Support BlackCustomer ServiceMon - Fri 8:30 AM - 5:00 PM EST(800) 426-3089info-us@swarovskioptik.com
Price from $4,177.00

What to consider when choosing your spotting scope

Objective lens diameter

The objective lens diameter specifies how much light can enter the optics. This makes it a key factor in an instrument’s performance, for example, in twilight. The bigger the objective lens diameter, the more light the objective lens can capture. The darker the surroundings, the larger the objective lens diameter needs to be. Check the precise product name as the number after the ‘x’ specifies the objective lens diameter in millimeters. For example, a device with the suffix 10x42 has an objective lens with a diameter of 42 mm.

Variable magnification

Variable magnification makes it possible to adjust the magnification flexibly within a specific range. In contrast to fixed magnification, it allows you to zoom from the lower value to the higher value. However, as the magnification increases, the field of view, i.e. the image section, becomes smaller. Check the precise product name as the number in front of the ‘x’ specifies the magnification. For example, 30-70x95 is a device with a variable magnification from 30x to 70x.

Modular spotting scope system

Modular spotting scope systems make it possible to flexibly combine different components (objective module and eyepiece module). The objective module is the component that faces the object being observed, while the eyepiece module is closest to the observer. Unlike permanent built-in spotting scopes or extendable spotting scopes, modular systems can be adapted to meet special requirements in different situations.

Weight

The weight specifies how heavy or light the device is (in grams or ounces). Do you intend to do a lot of walking? Lightweight equipment is a priority in this case.

Technical specification

Reticle
MRAD
MOA
Objective
80 mmEffective objective lens diameter
19 ftShortest focusing distance
> 5 dptDiopter correction at ∞
± 5 dptDiopter correction reticle
25-50x20-60xMagnification
3.2-1.6 mm4.0-1.3 mmExit pupil diameter
Digital
M 82 x 0.75Objective filter thread
Environment & Conditions
-40 to +131 °FFunctional temperature
-40 to +158 °FStorage temperature
13 ft (4m) water depth (inert gas filling)Submersion tightness
Size & weight
71.6 oz70.4 ozWeight without batteries
15.9 inLength in mm.
15.9 inLength with straight view in mm.

Downloads

Instruction manual STR BANr.: 724-01Instruction manual STR BANr.: 724-01
PDF 13.0 MBArtboard
Technical data STR 80 BANr.: 724-02Technical data STR 80 BANr.: 724-02
PDF 0.5 MBArtboard
