Product selection

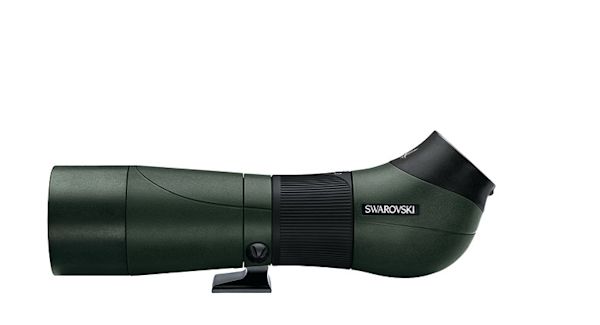

ATS / STS body

Model Selection
Product selection
Effective objective lens diameter
  • 65$2,110.00
  • 80$2,943.00

Do you want to learn more about the product family?

to Family
Do you need help?Customer Support BlackCustomer ServiceMon - Fri 8:30 AM - 5:00 PM EST(800) 426-3089info-us@swarovskioptik.com
Price from $2,110.00Dealer Locator
Dealer Locator

This product is currently not available to order from our online shop. Please contact a local retailer.

This product is currently not available to order from our online shop. Please contact a local retailer.

What to consider when choosing your spotting scope

Objective lens diameter

The objective lens diameter specifies how much light can enter the optics. This makes it a key factor in an instrument’s performance, for example, in twilight. The bigger the objective lens diameter, the more light the objective lens can capture. The darker the surroundings, the larger the objective lens diameter needs to be. Check the precise product name as the number after the ‘x’ specifies the objective lens diameter in millimeters. For example, a device with the suffix 10x42 has an objective lens with a diameter of 42 mm.

Variable magnification

Variable magnification makes it possible to adjust the magnification flexibly within a specific range. In contrast to fixed magnification, it allows you to zoom from the lower value to the higher value. However, as the magnification increases, the field of view, i.e. the image section, becomes smaller. Check the precise product name as the number in front of the ‘x’ specifies the magnification. For example, 30-70x95 is a device with a variable magnification from 30x to 70x.

Field of view

The field of view describes the size of the image section that can be seen through the optics. This is specified either in meters (width) at a distance of 1000 meters (m/1000m), or feet (width) at a distance of 1000 yards (ft/1000 yds), or as an angle (degrees). The higher the magnification, the smaller the field of view.
Binoculars have a large field of view, which means you can see a wide area. Spotting scopes have a higher magnification, which makes the field of view much smaller, but you can see more detail.

Weight

The weight specifies how heavy or light the device is (in grams or ounces). Do you intend to do a lot of walking? Lightweight equipment is a priority in this case.

What to consider when choosing your spotting scope

Objective lens diameter

The objective lens diameter specifies how much light can enter the optics. This makes it a key factor in an instrument’s performance, for example, in twilight. The bigger the objective lens diameter, the more light the objective lens can capture. The darker the surroundings, the larger the objective lens diameter needs to be. Check the precise product name as the number after the ‘x’ specifies the objective lens diameter in millimeters. For example, a device with the suffix 10x42 has an objective lens with a diameter of 42 mm.

Variable magnification

Variable magnification makes it possible to adjust the magnification flexibly within a specific range. In contrast to fixed magnification, it allows you to zoom from the lower value to the higher value. However, as the magnification increases, the field of view, i.e. the image section, becomes smaller. Check the precise product name as the number in front of the ‘x’ specifies the magnification. For example, 30-70x95 is a device with a variable magnification from 30x to 70x.

Field of view

The field of view describes the size of the image section that can be seen through the optics. This is specified either in meters (width) at a distance of 1000 meters (m/1000m), or feet (width) at a distance of 1000 yards (ft/1000 yds), or as an angle (degrees). The higher the magnification, the smaller the field of view.
Binoculars have a large field of view, which means you can see a wide area. Spotting scopes have a higher magnification, which makes the field of view much smaller, but you can see more detail.

Weight

The weight specifies how heavy or light the device is (in grams or ounces). Do you intend to do a lot of walking? Lightweight equipment is a priority in this case.

Technical specification

Objective
65 mm80 mmEffective objective lens diameter
17 mmEye relief
9.8 ft16.4 ftShortest focusing distance
> 5 dptDiopter correction at ∞
25-50x20-60xMagnification
2.6-1.3 mm3.3-1.1 mm3.2-1.6 mm4.0-1.3 mmExit pupil diameter
Digital
M 67 x 0.75M 82 x 0.75Objective filter thread
Environment & Conditions
-13 to +131 °FFunctional temperature
-22 to +158 °FStorage temperature
13 ft (4m) water depth (inert gas filling)Submersion tightness
Size & weight
49.6 oz48.3 oz59.1 oz57.8 ozWeight angled view
14.6 in15.8 inLength with angles view in mm.
More InfoCompare products

Downloads

Instruction manual ATS STS BANR: 660-21User manual ATS STS BANR: 660-21
PDF 3.5 MBArtboard
Technical Data ATS STS BANr.: 660-22Technical Data ATS STS BANr.: 660-22
PDF 0.8 MBArtboard
