Z5(i) 5-25x52 P

Model Selection
Product selection
Mount type
  • ring-mount
Reticle
  • 4W-I$1,999.00
  • PLEX-I$1,999.00
Free shipping above 95.00 $
Delivery in 3-7 working days
Return guarantee

Do you want to learn more about the product family?

to Family
Do you need help?Customer Support BlackCustomer ServiceMon - Fri 8:30 AM - 5:00 PM EST(800) 426-3089info-us@swarovskioptik.com
Price from $1,999.00

Product description

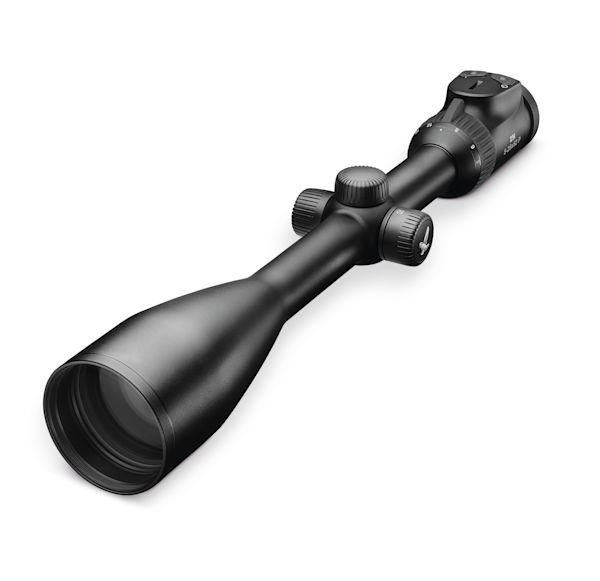

Its 25x magnification and 5x zoom rightly make the Z5i 5-25x52 P BT L rifle scope the expert when it comes to long-range hunting. Lateral parallax correction guarantees you a faultless image. The ballistic turret can be separately adjusted to your personal requirements, allowing you to stay on target at different distances.

What to consider when choosing your riflescope

Magnification

The magnification specifies how much closer an object appears to be. The higher the magnification, the closer the object appears and the smaller the field of view. Rifle scopes usually have variable magnification (zoom), e.g. 2-16x. This means it is possible to zoom continuously from 2x to 16x magnification.

Impact point adjustment

To always be able to aim at the sighting point from different distances, the reticle is adjusted so that the impact point matches the aiming point. The aiming point is the point on the object you want to target. The reticle adjustment in the turrets on the rifle scope is operated using the click settings. Each click changes the impact point.

Adjustment range

The adjustment range describes the range within which you can correct the impact point by adjusting the reticle without moving the device. The adjustment range is specified in relation to both the elevation and the windage adjustment.

We measure the adjustment range in meters per 100 meters (m/100m) or inches per 100 yards (in/100yd). Other manufacturers choose to specify this in MRAD (milliradians) or MOA (minutes of angle).

Light transmission

This describes the amount of visible light that can pass through an optical system and is expressed as a percentage. The objective lens diameter specifies how much light can enter the optics. This makes it a key factor in an instrument’s performance, for example, in twilight. The bigger the objective lens diameter, the more light the objective lens can capture. The darker the surroundings, the larger the objective lens diameter needs to be. Check the precise product name as the number after the ‘x’ specifies the objective lens diameter in millimeters. A device with a suffix of 2-16x50, for example, has an objective lens with a diameter of 50 mm.

Technical specification

mount-type
ring-mount
Reticle
4W-I
PLEX-I
Objective
5-25xMagnification
48-52 mmEffective objective lens diameter
9.6-2.1 mmExit pupil diameter
95 mmExit pupil distance
21.9-4.5 ft/100 ydsField of view
4.2-0.84 °Field of view degrees
Measurement
0.25 / 7Impact point correction per click
43/25 / 1.2/0.7Max. elevation / windage adjustment range (m/100m / in/100yds)
Digital
M 54x0.75Objective filter thread
Size & weight
14.61 inLength in mm.
18.9 ozWeight
1 inCentral tube diameter
Environment & Conditions
-4 to +131 °FFunctional temperature
-22 to +158 °FStorage temperature
13 ft / 4 m water depth (inert gas filling)Submersion tightness
More InfoCompare products

Downloads

Instruction manual Z5 Z5i Z3 BNr.: 696-01Instruction manual Z5 Z5i Z3 BNr.: 696-01
PDF 3.9 MBArtboard
Technical data Z5 Z5i Z3 BANr.: 696-02Technical data Z5 Z5i Z3 BANr.: 696-02
PDF 0.1 MBArtboard
WarrantySwarovski Optik Warranty
PDF 0.1 MBArtboard
